Is this the same building that burned in 2019?

No. The prior structure was destroyed. This is a new building on the same 0.3-acre parcel, designed to the 2017 Florida Building Code, built to read as the original.

Who prepared the site and the structural work?

Both disciplines were carried by O'Connell & Associates: sidewalks, parking, potable water, sanitary sewer, and stormwater on the civil side; foundation, framing, and roof-truss design on the structural side.

Which agencies issued approvals?

Applications were prepared and coordinated by O'Connell & Associates. Approvals are issued by the authority having jurisdiction, which for this project included Walton County and the Northwest Florida Water Management District.

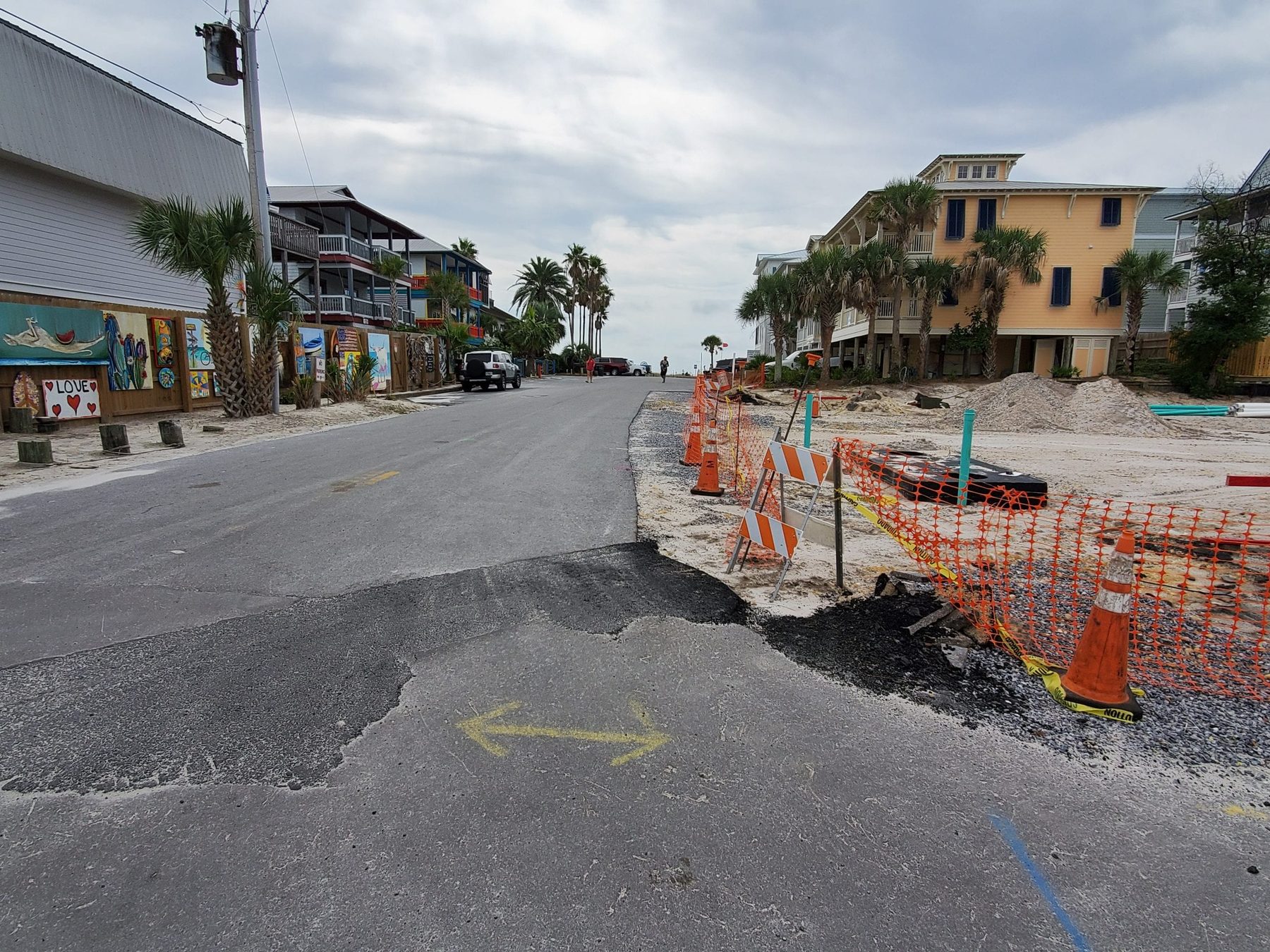

The Red Bar, a restaurant building engineered by O'Connell and Associates, Grayton Beach, Florida.

Civil Engineering + Structural Engineering · Grayton Beach

The Red Bar

Grayton Beach, FL

0.3-acre site8,000 sq. ft.Civil + Structural

The decision frame

In 2019, fire destroyed the roughly 100-year-old building that had housed The Red Bar. The 0.3-acre County Highway 30A site in Grayton Beach needed to be redeveloped for an approximately 8,000-square-foot restaurant, and photographs and sketches of the previous building were all the owner had to hold onto the form Grayton Beach remembered.

Project scale

Site area: 0.3 acres
Building area: Approximately 8,000 sq. ft.
Frontage: County Highway 30A
Code basis: 2017 Florida Building Code

Scope performed

Civil Engineering

Sidewalks and parking
Potable water service
Sanitary sewer service
Stormwater drainage and management

Structural Engineering

Conventional concrete stem-wall and slab foundation
Timber-framed walls
Pre-engineered timber roof-truss systems
Foundation, floor, and roof plans, structural details, working drawings, documents, and specifications

The result

The approximately 8,000-square-foot restaurant was rebuilt after the fire: a replacement structure with a conventional concrete stem-wall and slab foundation, timber-framed walls, and pre-engineered timber roof trusses, together with the civil infrastructure and named permitting work that let the site serve it. The Red Bar stands in Grayton Beach again.

Permitting and approvals

Applications prepared and coordinated by O'Connell & Associates. Approvals are issued by the authority having jurisdiction.

Walton County Minor Development Order
Northwest Florida Water Management District Environmental Resource Permit

Project photography

The Red Bar, a restaurant building engineered by O'Connell and Associates, Grayton Beach, Florida. View 1 of 8. — The Red Bar, a restaurant building engineered by O'Connell and Associates. View 1 of 8.

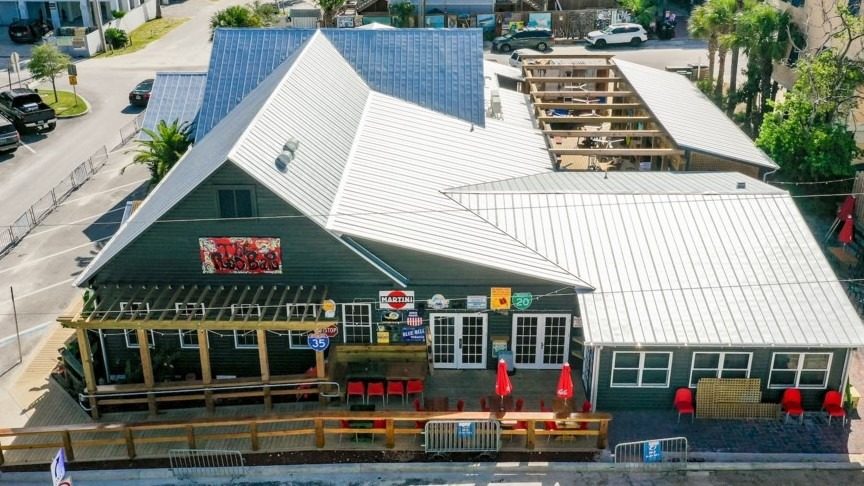

The Red Bar, a restaurant building engineered by O'Connell and Associates, Grayton Beach, Florida. View 2 of 8. — The Red Bar, a restaurant building engineered by O'Connell and Associates. View 2 of 8.

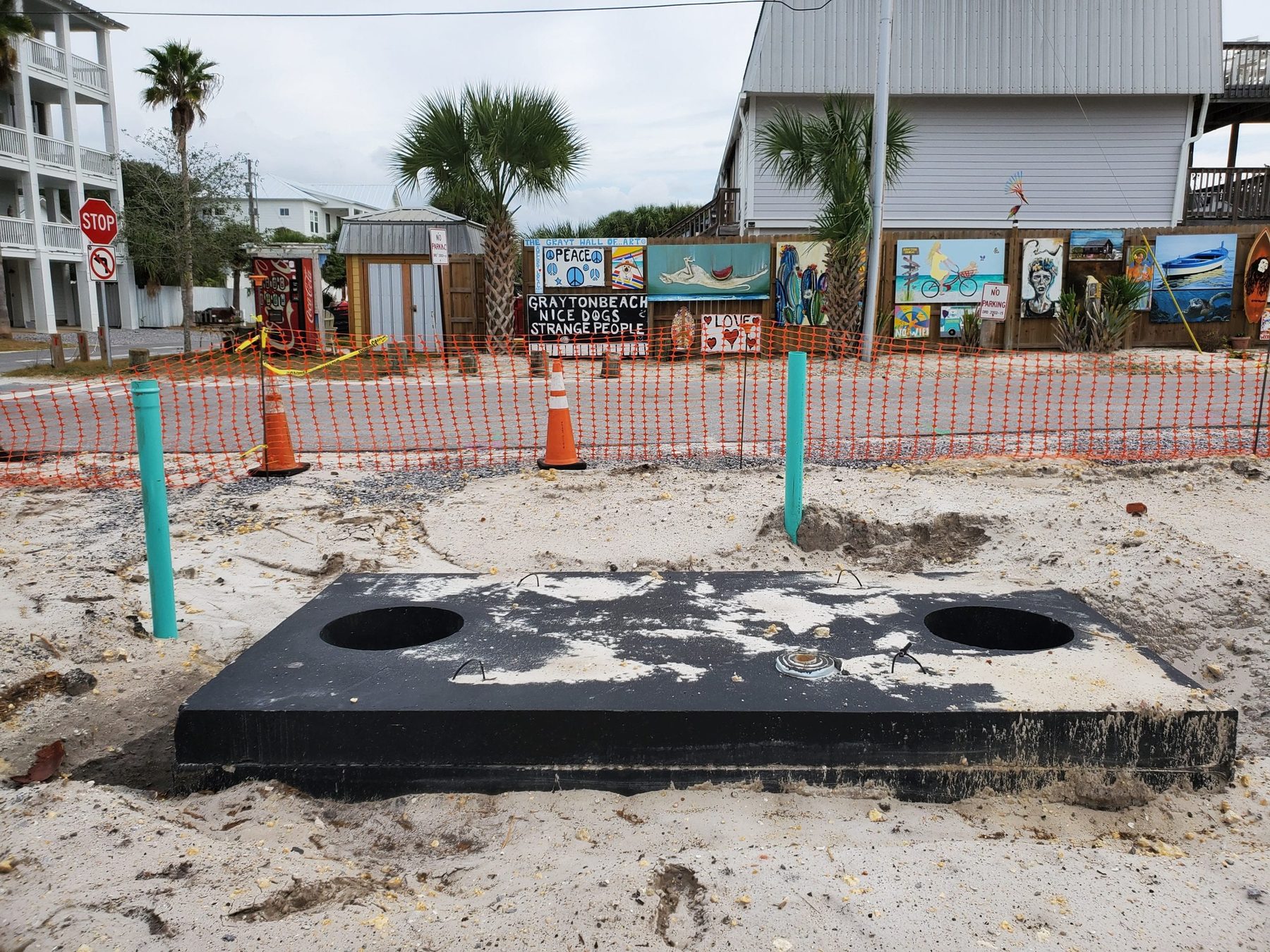

The Red Bar, a restaurant building engineered by O'Connell and Associates, Grayton Beach, Florida. View 3 of 8. — The Red Bar, a restaurant building engineered by O'Connell and Associates. View 3 of 8.

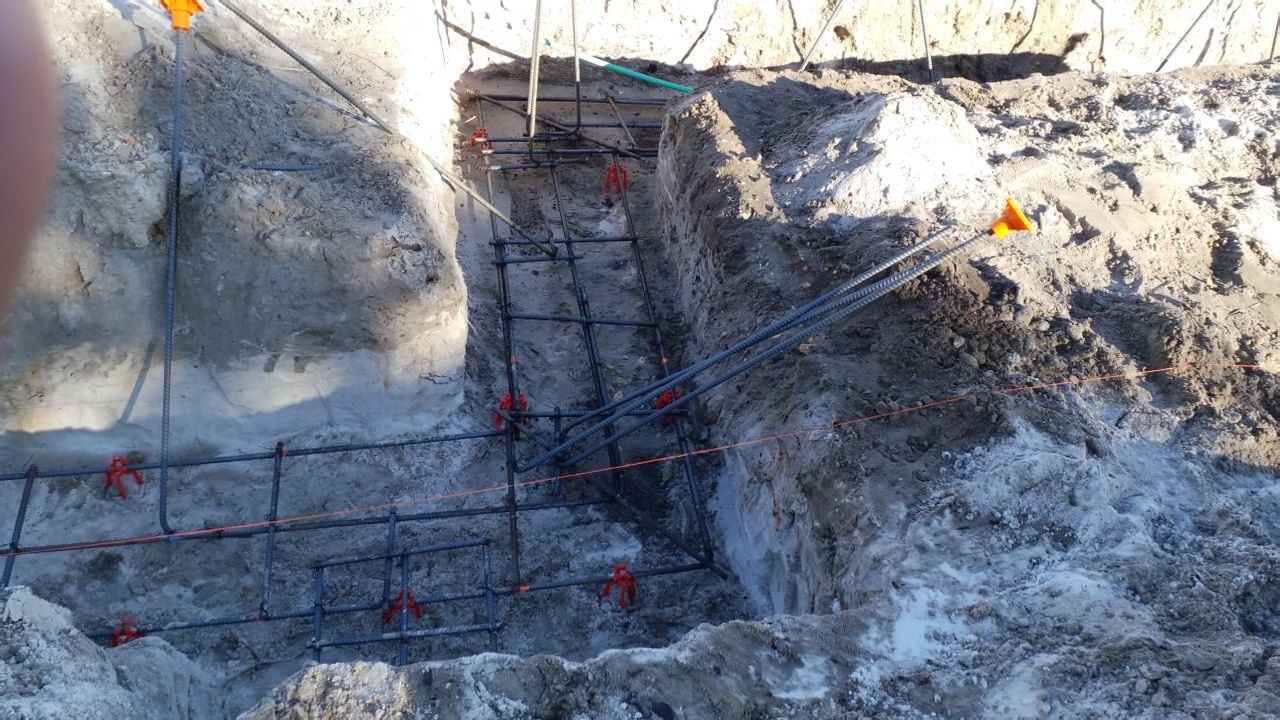

The Red Bar, a restaurant building engineered by O'Connell and Associates, Grayton Beach, Florida. View 4 of 8. — The Red Bar, a restaurant building engineered by O'Connell and Associates. View 4 of 8.

The Red Bar, a restaurant building engineered by O'Connell and Associates, Grayton Beach, Florida. View 5 of 8. — The Red Bar, a restaurant building engineered by O'Connell and Associates. View 5 of 8.

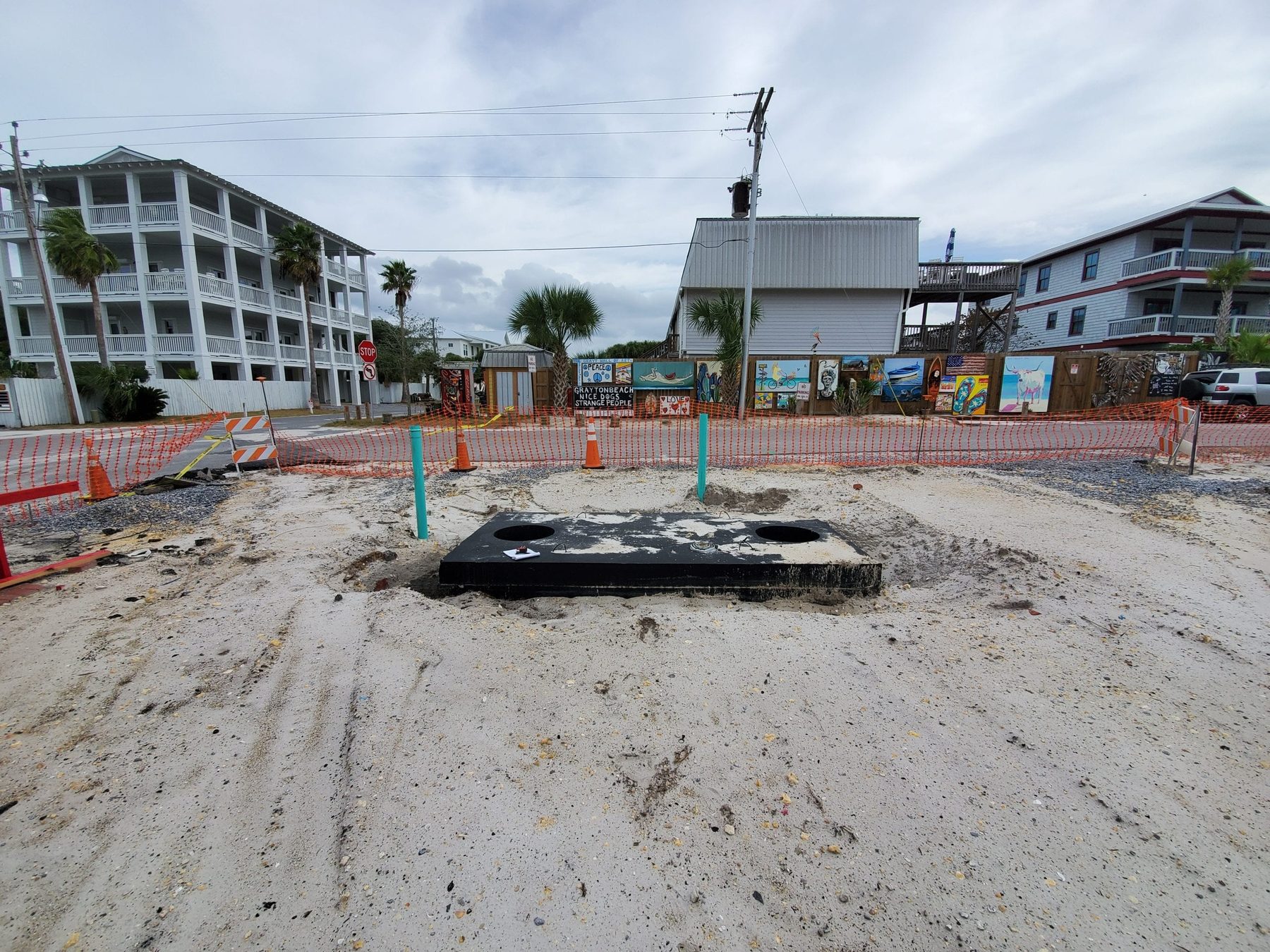

The Red Bar, a restaurant building engineered by O'Connell and Associates, Grayton Beach, Florida. View 6 of 8. — The Red Bar, a restaurant building engineered by O'Connell and Associates. View 6 of 8.

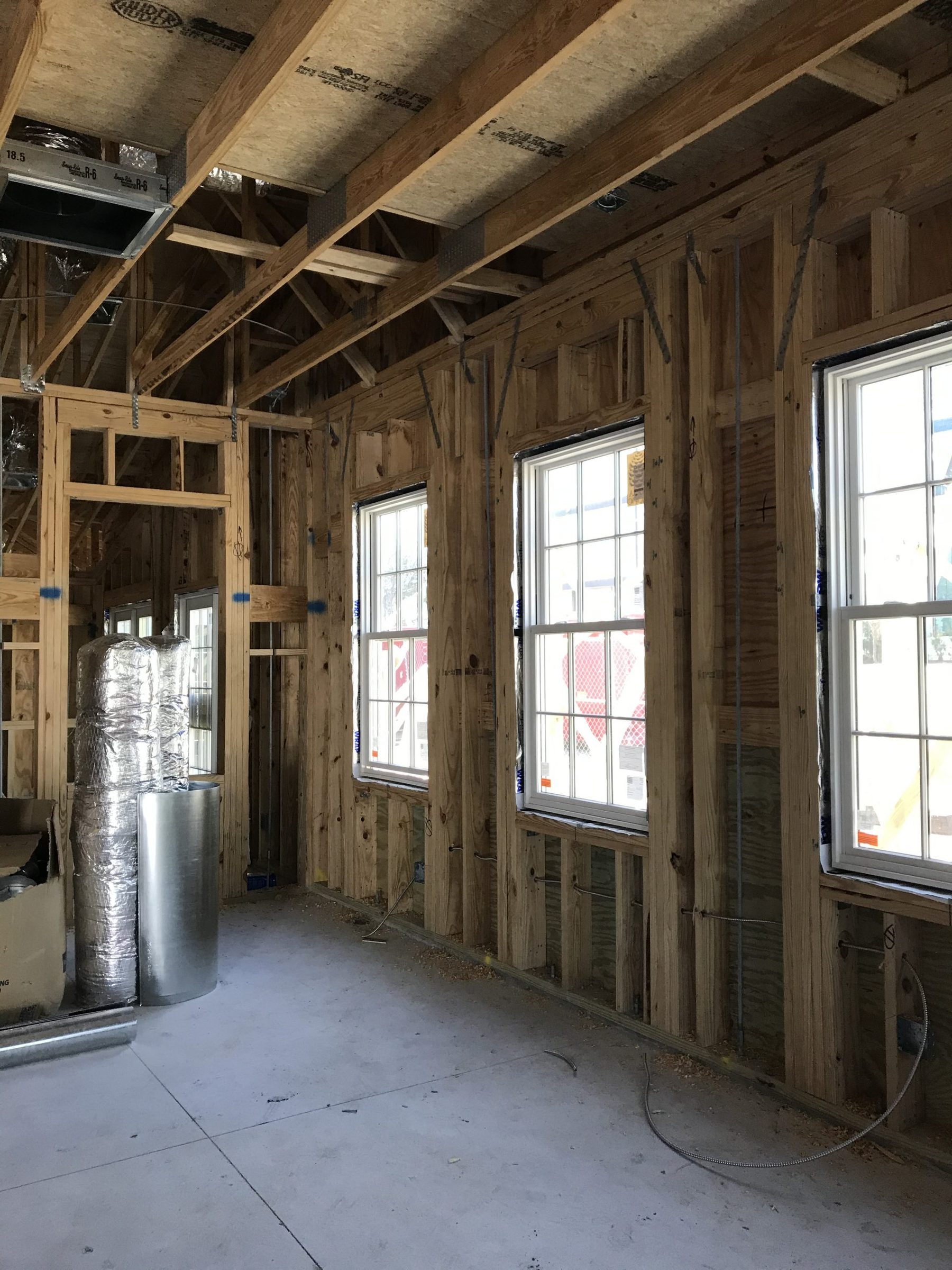

The Red Bar, a restaurant building engineered by O'Connell and Associates, Grayton Beach, Florida. View 7 of 8. — The Red Bar, a restaurant building engineered by O'Connell and Associates. View 7 of 8.

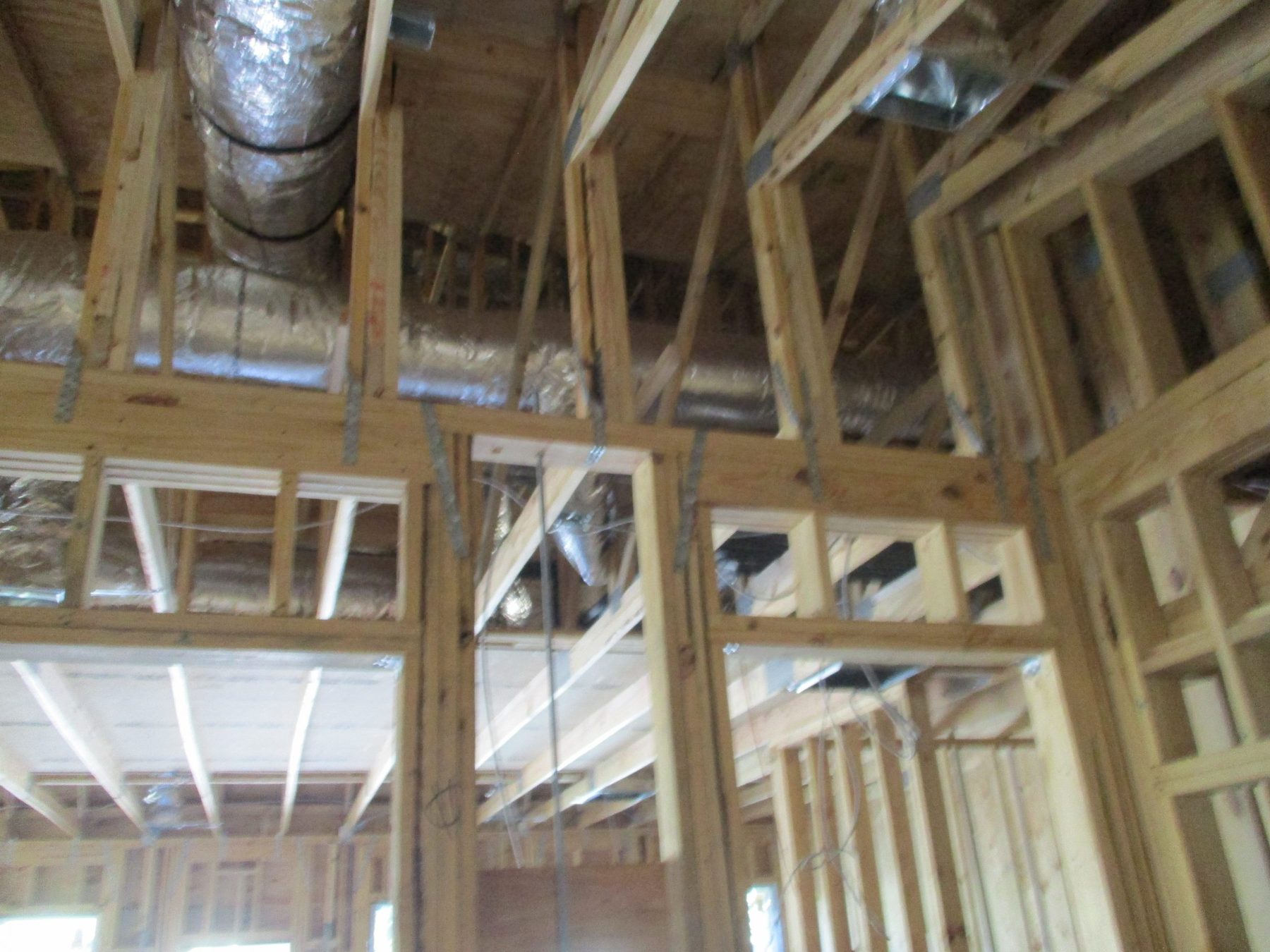

The Red Bar, a restaurant building engineered by O'Connell and Associates, Grayton Beach, Florida. View 8 of 8. — The Red Bar, a restaurant building engineered by O'Connell and Associates. View 8 of 8.

Questions we get

Is this the same building that burned in 2019?: No. The prior structure was destroyed. This is a new building on the same 0.3-acre parcel, designed to the 2017 Florida Building Code, built to read as the original.
Who prepared the site and the structural work?: Both disciplines were carried by O'Connell & Associates: sidewalks, parking, potable water, sanitary sewer, and stormwater on the civil side; foundation, framing, and roof-truss design on the structural side.
Which agencies issued approvals?: Applications were prepared and coordinated by O'Connell & Associates. Approvals are issued by the authority having jurisdiction, which for this project included Walton County and the Northwest Florida Water Management District.
