Can infrared find problems inside a CMU wall?
It can surface some of them. Infrared reads temperature differences at the surface, which can reveal ungrouted cells and moisture within block walls without opening them.
Masonry Design
Reinforced masonry carries a large share of the commercial and multi-family stock here, and it hides its condition better than any other material.
What is included
- Member sizing verified by computer-based load analysis
- Comprehensive plans and details specific to the project
- Designed to the current edition of the applicable building codes
- Construction Observations available through construction
Where it is used
We have designed a large volume of structural masonry for commercial and residential structures, including bearing walls, shear walls, lintels, and pilasters.
Masonry design is most common on our commercial and residential work.
How we design it
We use computer-based analysis software to simulate the loads that act on each structural member, so a member is sized for what the building will actually do to it.
Grouted cell layout, bar placement, and control joint spacing are the decisions that determine whether a masonry wall cracks on a schedule you chose or one you did not.
Through these projects we produce the drawings, documents, and specifications required to complete the work. Each set includes the plans and details specific to that project, designed to the most current edition of the applicable building codes.
Related projects
Where we have done this work.
Beachy Beach Office
Panama City Beach, FL

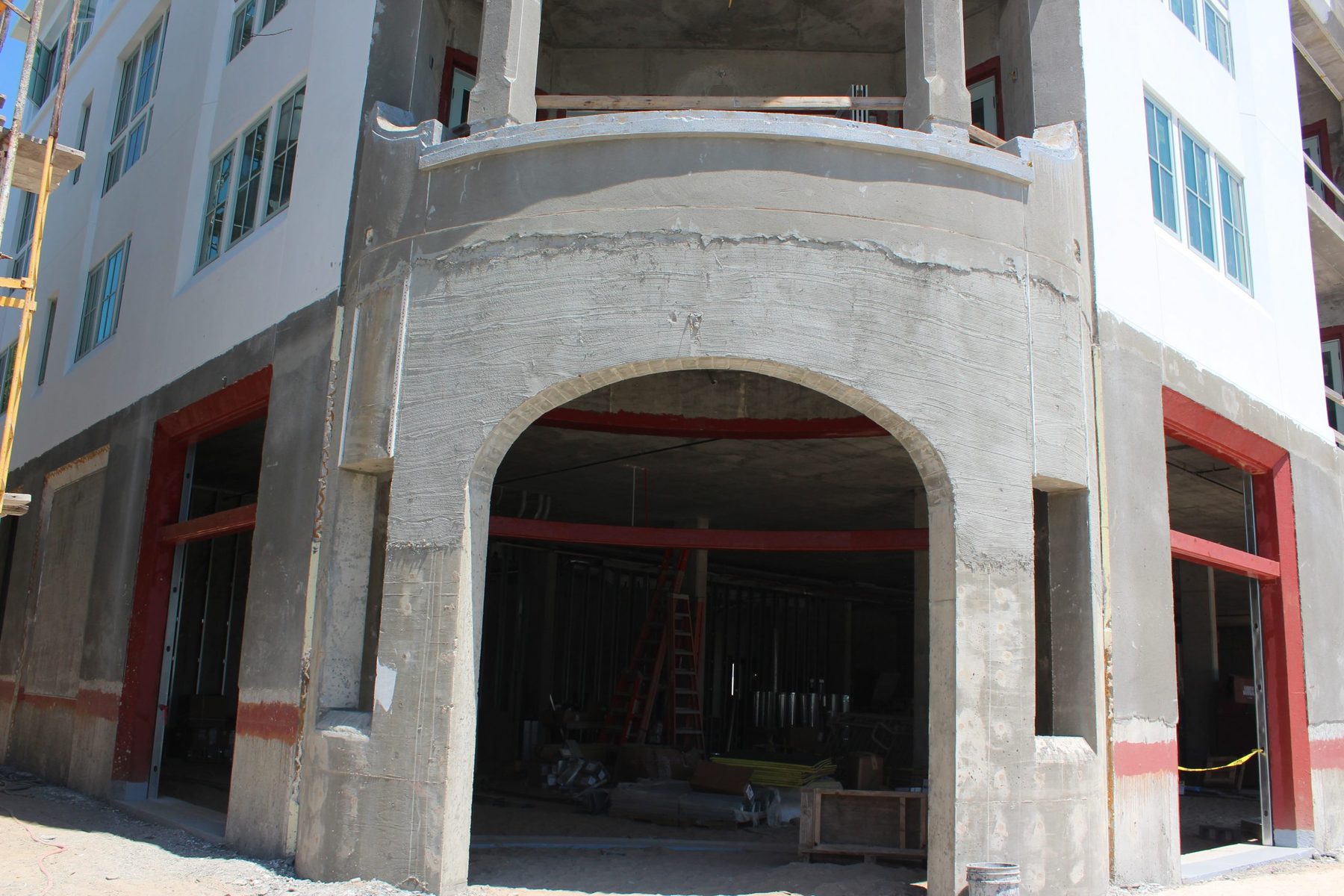

Camden & Whitby
Alys Beach, FL

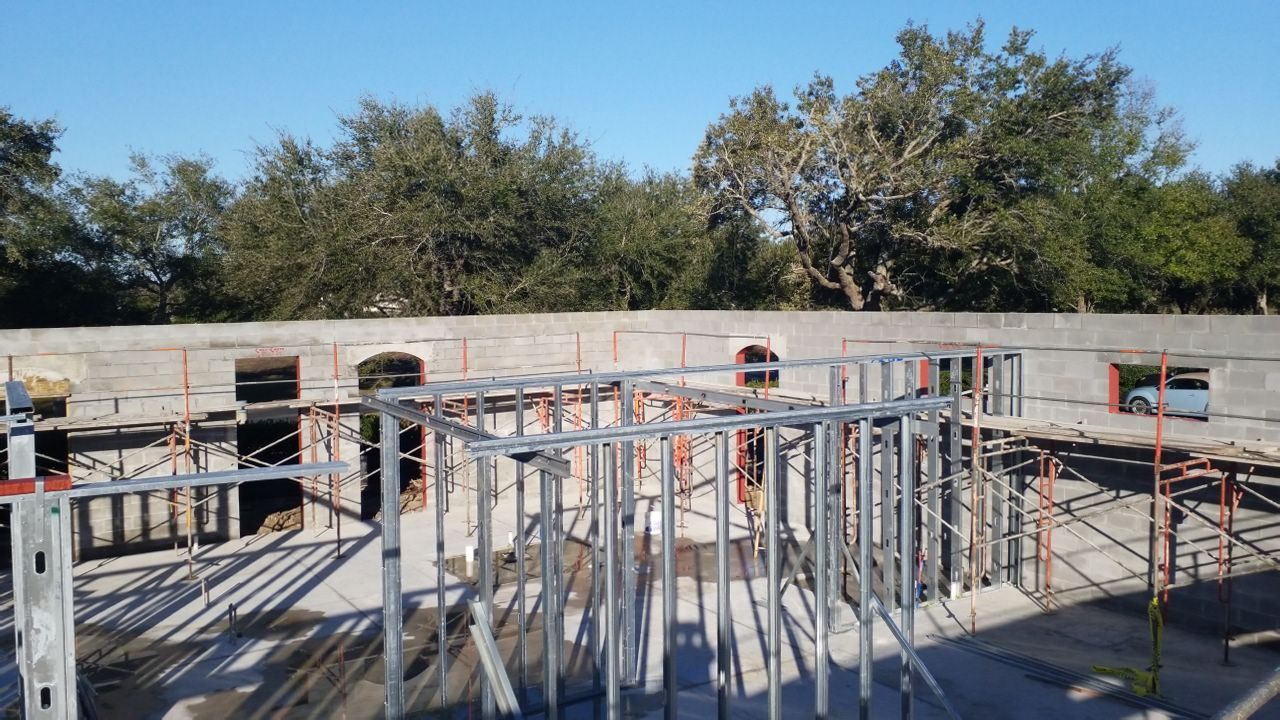

Coastal Dermatology Office
Fort Walton Beach, FL

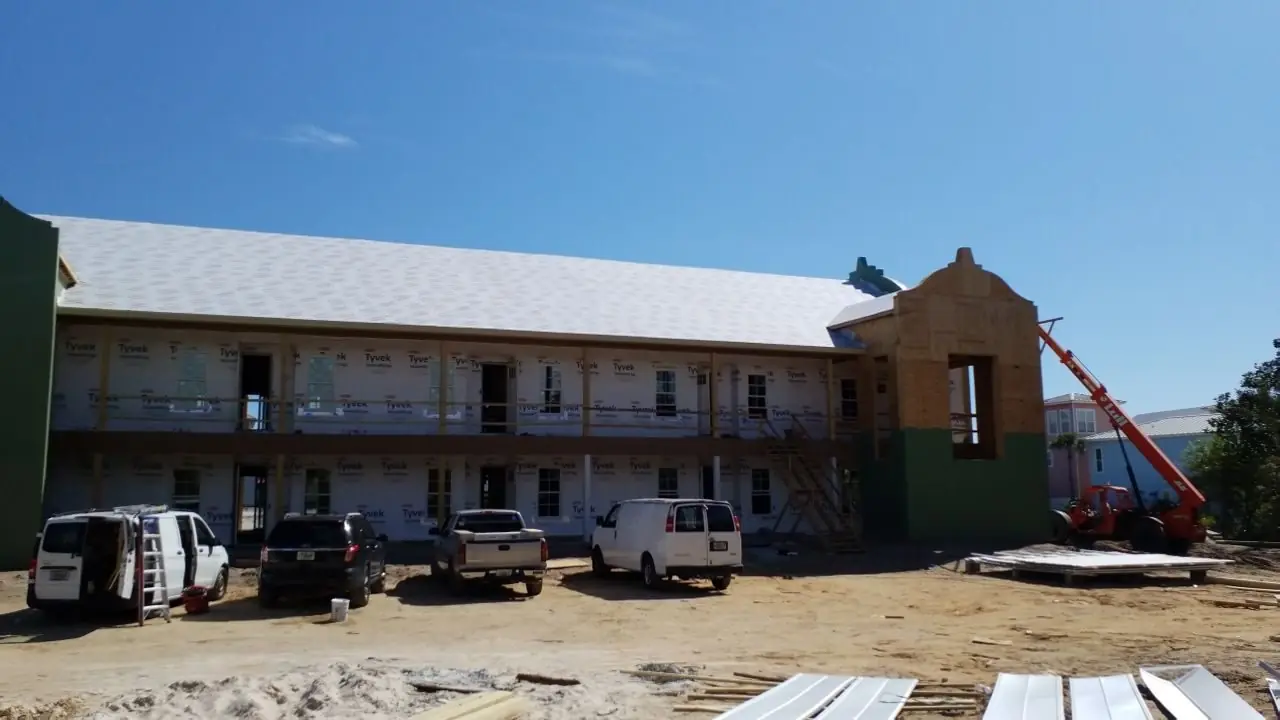

Martha's Lane Apartments
Santa Rosa Beach, FL

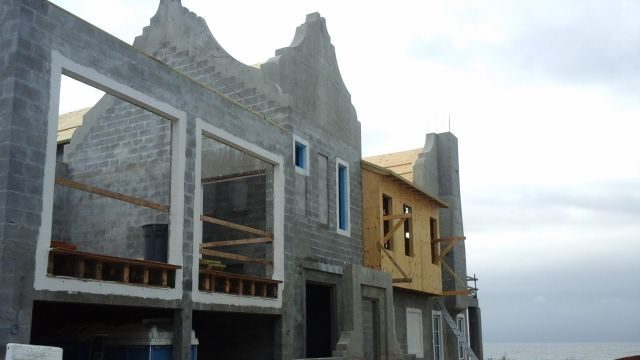

5 Bedrooms, 5.5 Bath Residential Design Rosemary Beach
Rosemary Beach, FL

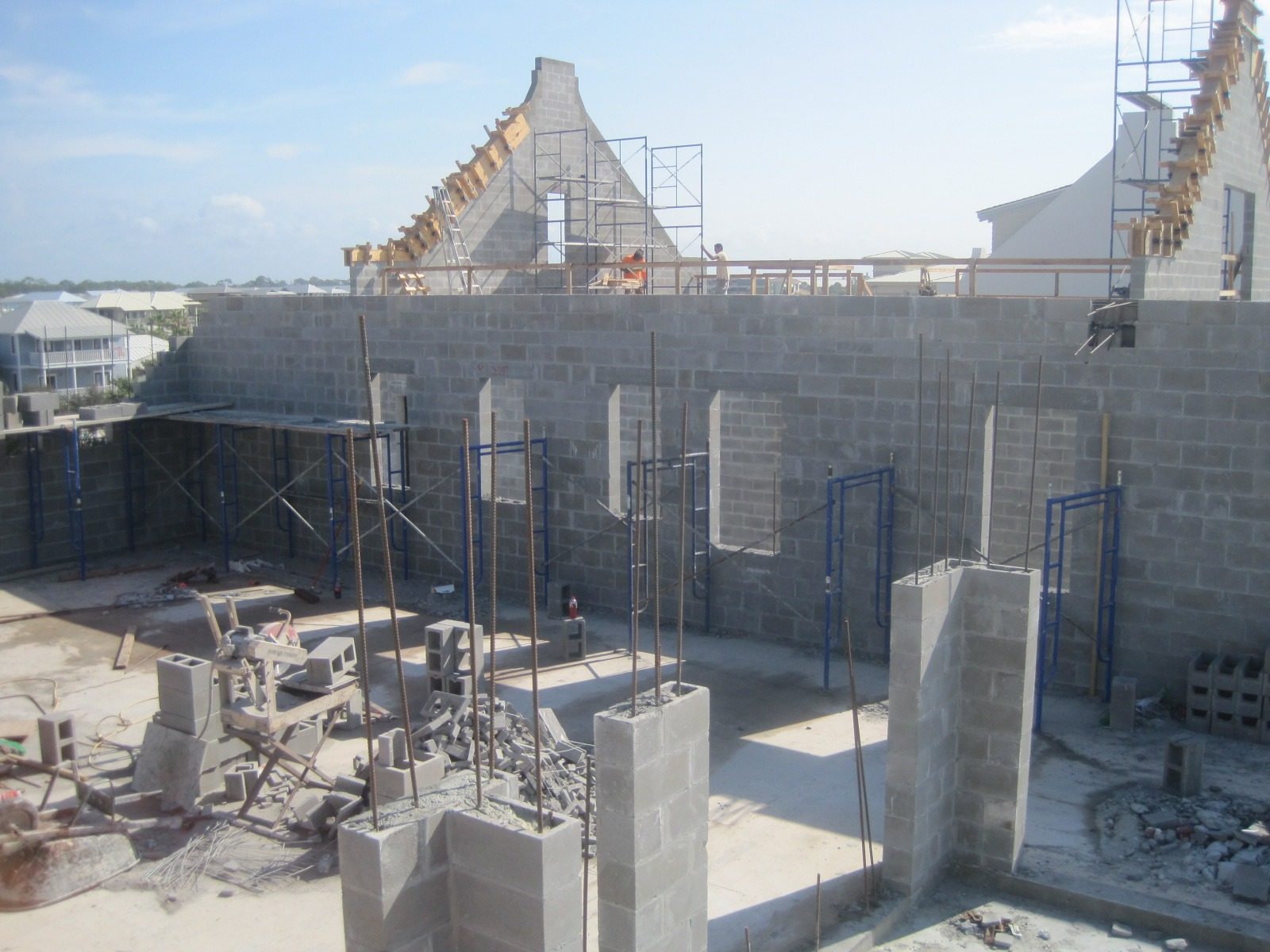

6 Bedrooms, 7.5 Bath Residential Design Santa Rosa Beach
Santa Rosa Beach, FL
Who carries this work
Licensed and credentialed in structural engineering
Common questions.
Next step
Need masonry design?
Send the building, the site, and the timeline. A licensed engineer will tell you what we would actually do.
